high speed Precision Motor-driven screen printing machine

Model No.:PS-6080PV

Type of printing plate: Screen Printer

Applicable industry: Building Material Shops, Farms, Energy &Amp; Mining

Out-of-warranty service: Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): Canada, Brazil, Japan, Algeria, Nigeria

Showroom location (in which countries are there sample rooms overseas): Canada, Brazil, Morocco, Romania

status: New

place of origin: China

use: Paper Printer, Label Printer

degree of automation: Semi-Automatic

Printing color number and surface number: Single Color

warranty period: 1 Year

Core selling point: High-Accuracy

Marketing type: Ordinary Product

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Motor

Type: Vertical Screen Printing Machine

Color & Page: Single-Colour Printing Press

Application: Packaging Printing

Working Table: Vacuum Working Table, Size: 1000*1500mm

Actions: Up-down Of Screen Plate

To Be Printed: Plain Objects

Squeegee Stroke: Adjust The Limited Switch

Squeegee And Screen Plate Control: High Precision Linear Guideway

H.s.code: 8443192190

Packaging: Wooden case

Productivity: 10 sets/month

Brand: KC

Transportation: Ocean

Place of Origin: Dongguan

Supply Ability: 50 sets/month

Certificate: CE Certificate

HS Code: 8443192190

Port: Shenzhen,Guangzhou,Hongkong

Precision Motor Screen Printing Machine

Machine description

         Suitable for all kinds of materials, such as plastic printing. Such as: plastic, glass, ceramics, wood and other materials. Printing products such as various types of transfer paper, all kinds of PVC, PET, PC and other hard hard film, Film, paper, nameplate, keyboard, instrumentation, electronics and other products. As well as a variety of different thickness of the substrate film, card, plate, Zhang high precision, fine flat screen printing.

Precision Motor screen printing machine//Usage

• It is a flat screen printer with a suction function and is suitable for printing in thin products such as paper, PVC film, plastic film, textile, etc., which are easy to walk in the printing process. Printing the largest area: 600 * 800 mm;
• Structural design using screen up and down sports, more conducive to product removal and placement;
• Stable horizontal cylinder design, blowing ink pressure uniform, back to the ink formation, printing quality is good;
• Can be semi-automatic operation, the user interface is good;
• Machine debugging process set up a single function operation, set up to complete the full operation;
• Widely used in paper packaging, mirror printing, glass printing, machine panels, stickers printing, combined with a variety of processes, can achieve UV scrub, UV onions, UV local varnish and coating process. Also widely used in water mark transfer paper, thermal transfer paper printing.
• Screen printing machine and the Screen Plate are used up and down the use of high-precision hardened guide shaft structure, high parallelism, operating error can be controlled within 0.05mm, is a high-precision flat screen printing machine commonly used in the form of institutions;
• Widely used in high-precision screen printing tasks such as: circuit boards, dot printing, membrane switch, ink layer thickness requirements of the printing area.

Precision Motor screen printing machine//Application

• Widely used in Glass printing field;
• With UV Curing Machine, Can finish many UV special printing process for UV package industry.
• Suitable for printing Mobile windows ;

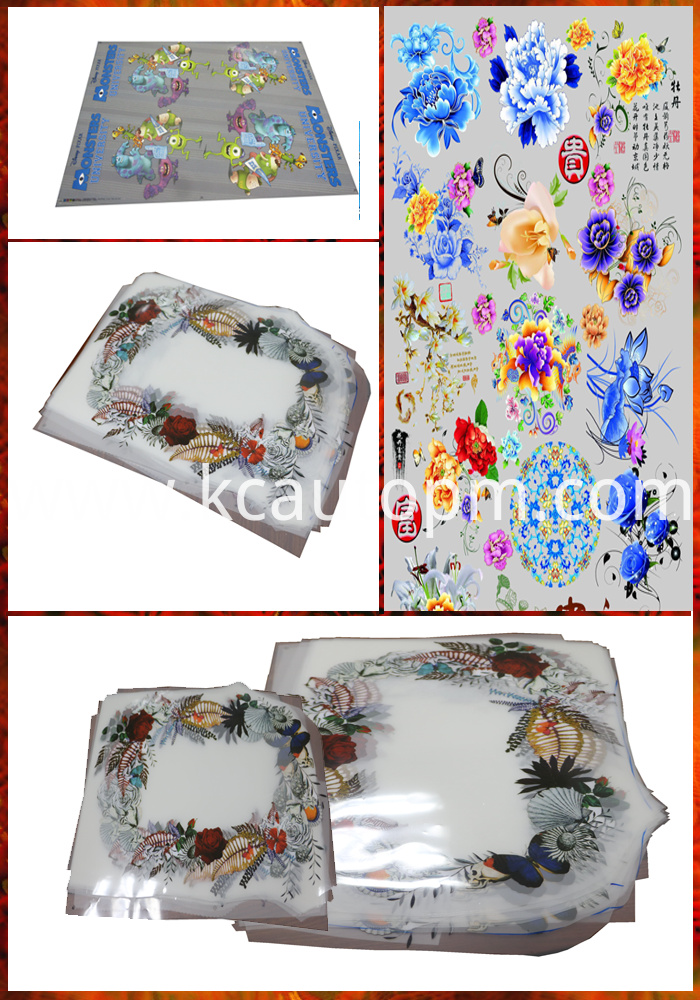

• Suitable for printing water transfer label and heat transfer label through diffrent process;
• The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

Precision Motor screen printing machine//Technical Parameters

Item	PS-6080PV	PS-70100Pv	PS-80120Pv	PS-90140PV
Printing height(mm)	50	50	50	50
Air(liter/min)	55	55	55	55
Worktable dimension(mm)	700×900	800×1100	900×1300	1000×1500
Max. frame size(mm)	850×1050	950×1250	1050×1450	1150×1650
Max. printing area(mm)	600×800	700×1000	800×1200	900×1400
Max. printing speed(pcs/h)	800	700	700	600
Max Stroke of up-and-down frame(mm)	200	200	200	200
Max stroke of Squeegee(mm)	800	1000	1200	1400
Squeegee motor wattage(w)	200	200	200	200
Table Precision(mm)	+-0.03	+-0.03	+-0.03	+-0.03
Package dimension(mm)	1.51×1.26×1.83	1.51×1.36×1.83	1460×1690×1820	2070×1790×1820
G.W.(kg)	541	570	600	630
Works supply	110 V-220 V Power supply; 5-7 Bar compress air

Precision Motor screen printing machine//Advantage

• High-precision linear guide-way control lifting and dropping of screen plate and Rubber Squeegee;
• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen form Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.

Machine details
