Mineral water-bottle Cylinder screen printer machine

Model No.:S-380SM

Type of printing plate: Screen Printer

Applicable industry: Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Food Shop

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): Pakistan, Mexico, Russia, Thailand, Japan, Australia, Morocco, Argentina, Uae, Colombia

Showroom location (in which countries are there sample rooms overseas): India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile

status: New

place of origin: China

use: Paper Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer

degree of automation: Semi-Automatic

Printing color number and surface number: Multicolor, Single Color

warranty period: 1 Year

Core selling point: Easy To Operate, High-Accuracy, Long Service Life, High Productivity

Marketing type: Hot Product 2019, Ordinary Product

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 1 Year

Core components: Bearing, Gear, Pressure Vessel

Max Printing Diameter: 380mm

Type: Vertical Screen Printing Machine

Style: Screen-process Printing Press

Structure: Platen Press

Color & Page: Single-Colour Printing Press

Application: Packaging Printing

Packaging: Wooden case

Productivity: 10 sets / month

Brand: KC

Transportation: Ocean

Place of Origin: Dongguan

Supply Ability: 50 sets/month

Certificate: CE Certificate

Port: Shenzhen,Guangzhou,Hongkong

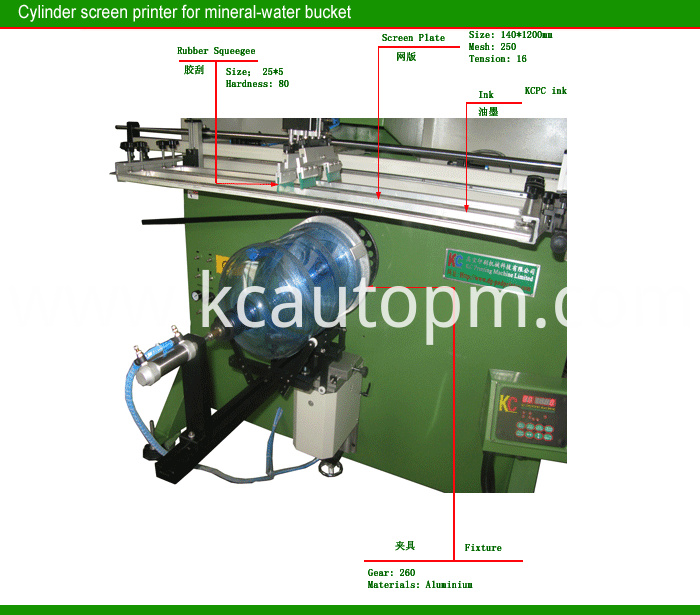

S-380SM 5-Gallon mineral bucket Screen Printing Machine//

Usage and characters

Solution

Technical data

•  On the basis of the transformation of the special bottles of mineral water cylinder screen printing machine, printing arc length 350mm less than 5 gallons of mineral water bottles;
• Dedicated transmission gears and fixture design, to ensure that the mineral water bottle screen printing;
• 125mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
• Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
• With surface UV Curing Machine M-1030UVS can be UV screen printing of plastic containers;
• Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
• Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
• You can use the foot switch for automatic operation, the safety factor greatly increased;
• Multi-type screen printing machine, Both printing round objcts and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

S-380SM Multi-Function Screen Printing Machine //Parameters

• Gear line width: 14 mm, Length: 540 mm;
• Maximum printing thickness: 300 MM;
• Air consumption: 80 Liter/Min;
• The diameter of maximum printing workpiece: Φ125 MM ;
• The arc of maximum printing workpiece: 380 MM;
• The maximum printing speed: 1300 Pc/H;
• Weight: 187 kg.
• Max Frame dimension: 550×400 mm;
• Maximum Plain printing area:300×400 mm;
• Max diameter of workpiece: Φ150 MM
• Works supply: 110V-220V Power supply;5-7 Bar compress air;
• Dimension: 900 mm×920 mm×1360 mm;
• Gross weight: 150KG;
• CBM: 1.12608
• H.S.CODE: 8443198000
• Certificate: CE

S-380SM Multi-function screen printing Machine//Advantage

• Design for Mineral water bucket , suitable all types mineral bucket screen printing
• Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
• Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
• High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
• High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
• Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
• Microcomputer control program operations, set up a variety of modes;
• Four counts digital LED count, high degree of automation;
• Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
• Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
