Servo registering cylinder screen printing machine

Share to:
Unit Price: USD 7250 / Bag/Bags
Min.Order Unit Price
1 Bag/Bags USD 7250 / Bag/Bags
Payment Type: L/C,T/T
Terms of Trade: FOB,CIF
Min. Order: 1
Unit Price: USD
Basic Info
Model No.:S-100SL
Type of printing plate: Screen Printer
Applicable industry: Garment Shops, Machinery Repair Shops, Restaurant, Food Shop, Energy &Amp; Mining
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets): United States, Germany, Brazil, Indonesia, Mexico, Thailand, Australia
Showroom location (in which countries are there sample rooms overseas): India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea
status: New
place of origin: China
use: Card Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Automatic, Long Service Life, High Productivity
Marketing type: Hot Product 2019, Ordinary Product, New Product 2019
Mechanical test report: Provided
Core component warranty period: 1 Year
Core components: Motor, Plc, Engine
Type: Vertical Screen Printing Machine
Style: Screen-process Printing Press
Color & Page: Single-Colour Printing Press
Application: Packaging Printing
Additional Info
Packaging: Wooden case
Productivity: 10Sets/month
Brand: KC
Transportation: Ocean
Place of Origin: Dongguan
Supply Ability: 100 Sets/month
Certificate: CE Certificate
Port: Shenzhen,Guangzhou,Hongkong
Product Description

Servo Cylinder Screen Printing Machine

096

S-100SL Screen printing machine//Guide

  • 100mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
  • Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
  • With surface UV Curing Machine M-1030UVS can be UV screen printing of plastic containers;
  • Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
  • Upper and lower part of Screen Plate, take place after the table automatically lifting the work piece;
  • You can use the foot switch for automatic operation, the safety factor greatly increased;
  • Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multi-functional , and reduce costs.
S-100SL Servo Screen printing machine//Application

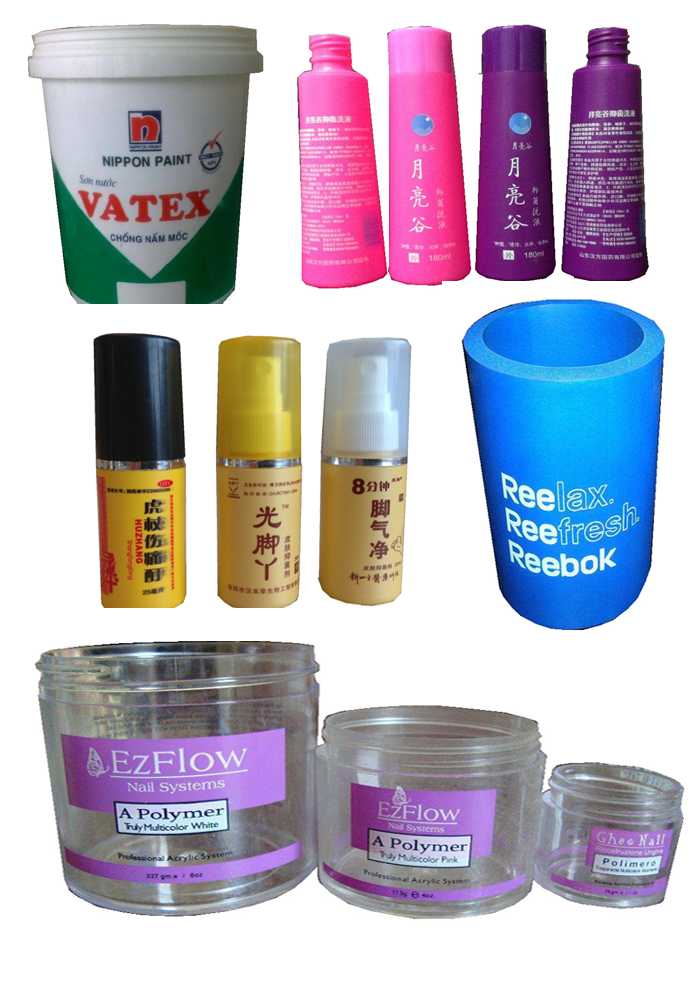

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.

262


S-100SL  Screen printing Machine //Parameters
  • The max printing thickness: 200 MM;
  • Air consumption: 95 Lit/Min;
  • Outline size: 1080×850×1280MM;
  • The max printing area : 200×250MM;
  • Dimension of working table: 250mm×300mm;
  • Max printing speed: 1300Pc/H;
  • Max frame dimension: 410×350mm;
  • Stroke of Squeegee: 350mm;
  • Stroke of Table cylinder: 100mm;
  • Max Diameter of Products:100mm;
  • Max length of Products: 300m

S-100SL SERVO Cylinder screen printing Machine//Advantage
  • Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
  • Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
  • High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
  • High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
  • Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
  • Microcomputer control program operations, set up a variety of modes;
  • Four counts digital LED count, high degree of automation;
  • Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
  • Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick

Details description

013
